DOM Rattlesnake Driver Pins

Sourced from a vintage ix-5/ix-10 pin kit, DOM's "adjustable disc" drivers are some of the most incredible pins ever offered commercially. Unused vintage stock is rare and only a small quantity of pins are available.

Compatibility

These pins work with several DOM locks including the RN, S, SV, ix 5, among others

Using them in non-DOM locks may be possible as their diameter is very close to Schlage pins

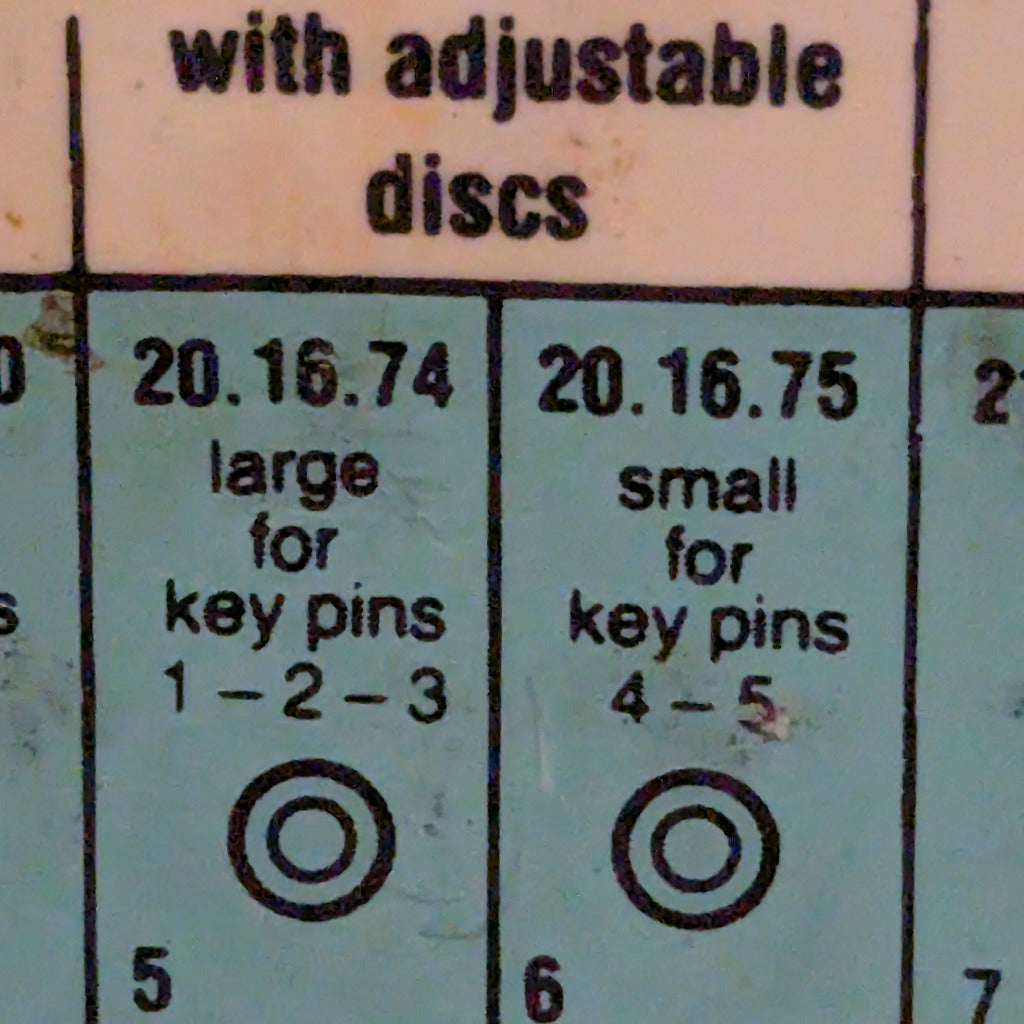

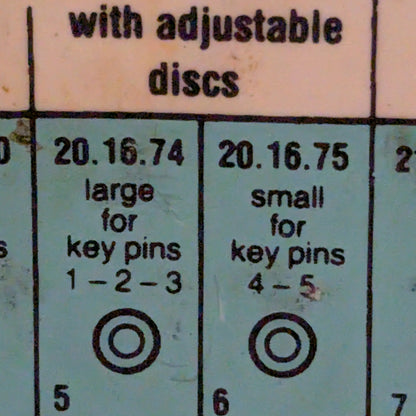

Key Pin Pairings

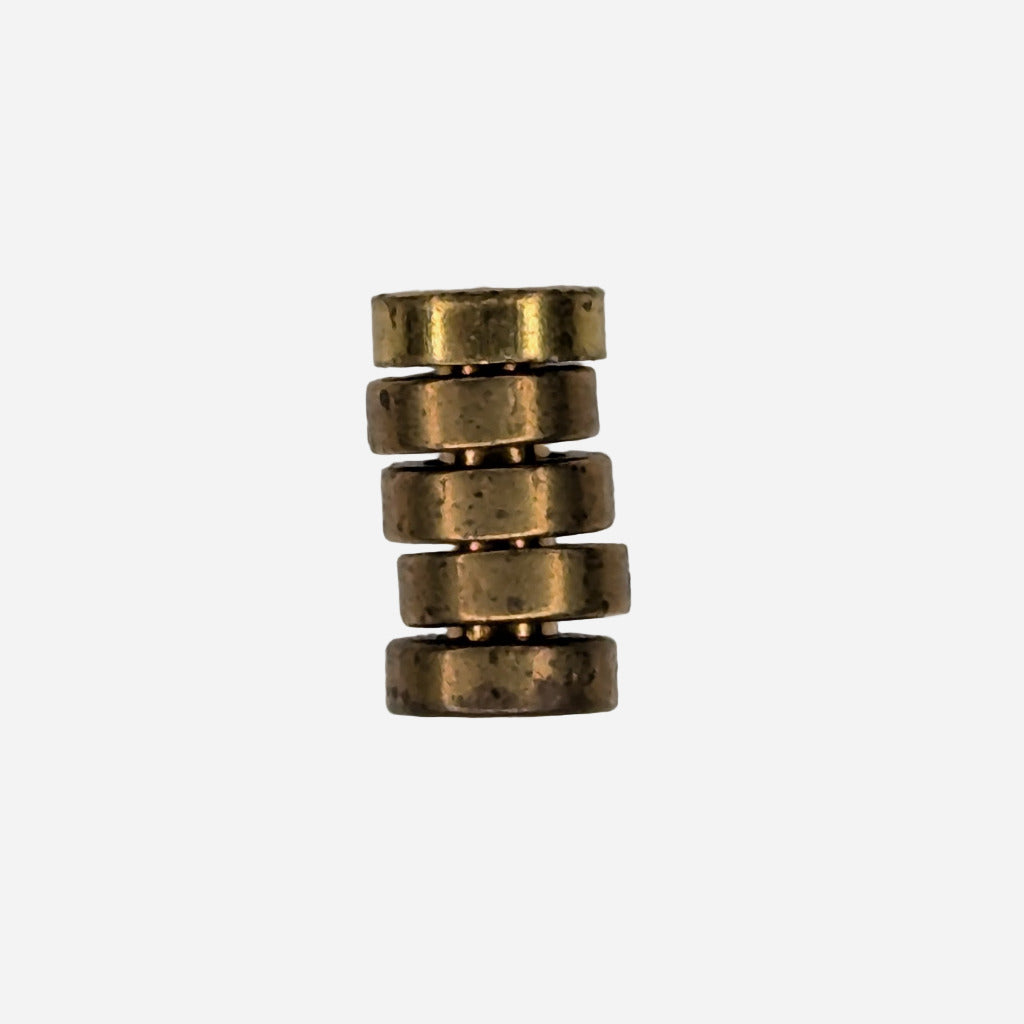

• Small (5-segment) is for DOM key pins 4 & 5

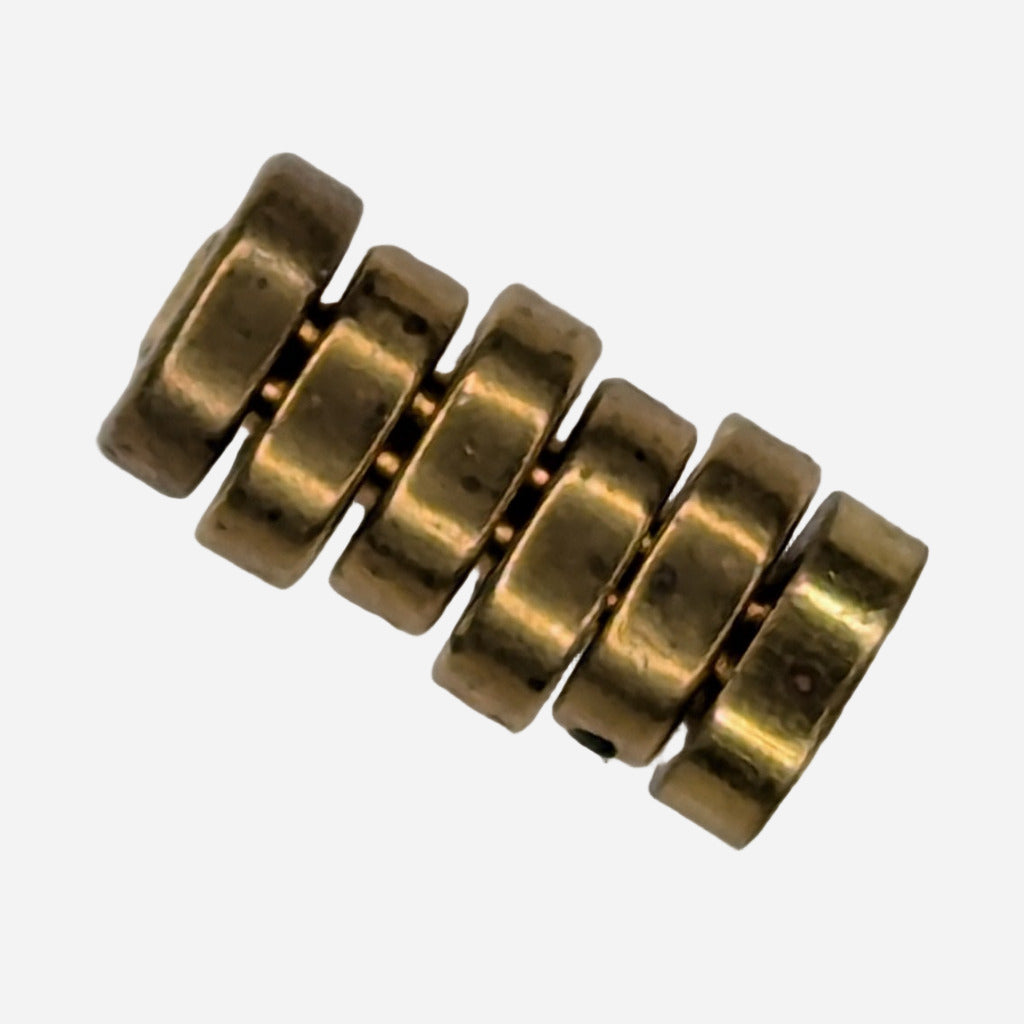

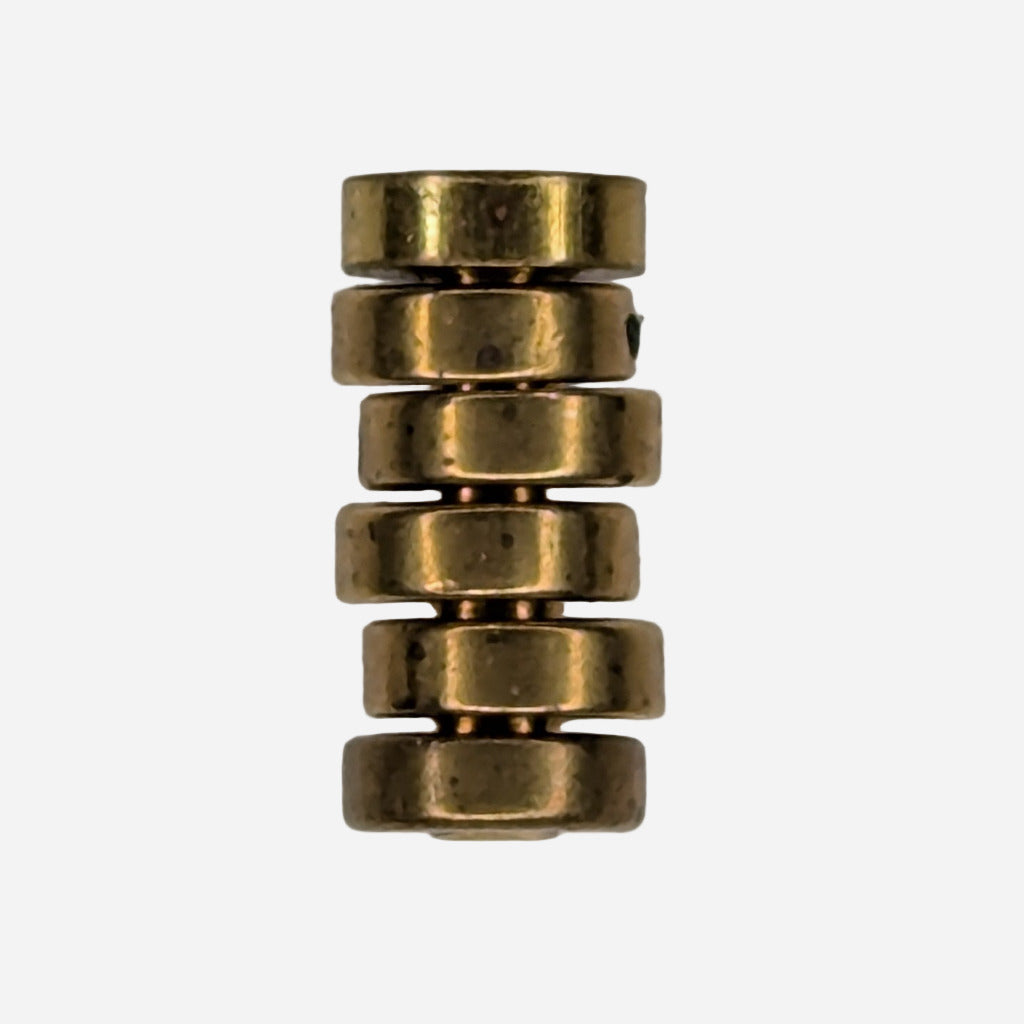

• Large (6-segment) is for DOM key pins 1, 2, 3


Measurements

• Diameter: 3mm (~0.117")
• 5-Segment Pin Total Length: 5.6mm (~0.22")
• 6-Segment Pin Total Length: 6.5mm (~0.256")
• Individual Segment Length: ~1mm (~0.0385")
